REAR BLADE

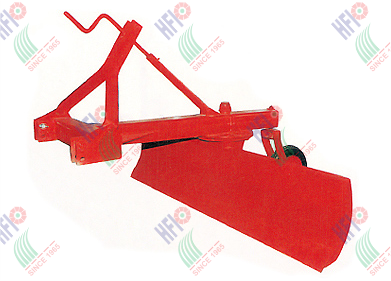

MULTIPURPOSE REAR BLADE HFI-21

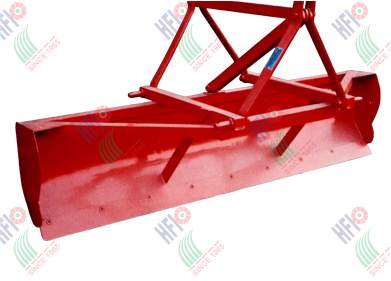

DOUBLE ACTIOM REAR BLADE HFI-26

Land Leveling, yard cleaning, farm road grading, snow clearing, ditching and terracing, backlifting, earth moving: these are some of the many jobs that you can do with this versatile tool.

With the grader wheel installed, hydraulic position control holds the blade at the chosen depth for the fine leveling.
Angle and pitch of blade are also adjustable from tractor seat.
Blade pitch of blade is adjustable from 0 to 40 by the screw lever in reach of the tractor seat.
The blade can be completely reversed for back filling.
For Access to Awkward places it can be offset to either side.
An alternative hitch pin for the right and lower link allows the blade to be tilted for digging dithes or irrigation channels.

SPECIFICATION:
Mounting	Category 1, three-point linkage
Construction	Entirely steel frame, Reversible ligh carbon steel cutting edge.
Blade Angle	Adjustable o° to 70° in two increments to either side and similarly with blade
	facing rearward.
Blade pitch	Adjustable from 0° to 40°

Used for land levelling, garden cleaning, ditching and terracting, back filling etc.

Type of Machine Tractor rear mounter Commercial Name Rear Blace Local Centent By Cost 100%

Power Source 26-56 kw tractor

SPECIFICATION:

Length

700mm

Width

1550 mm

Height Weight

Blade Angle

Blade Pitch

Fuel/Power consumption

Operating Speed

Efficiency

400 mm

170 kg

0⁰ to 70⁰ (adjustable in two increments to eight side)

0⁰ to 40⁰ (adjustable)

5-6 lit/hr

7-8 km/hr

80%
